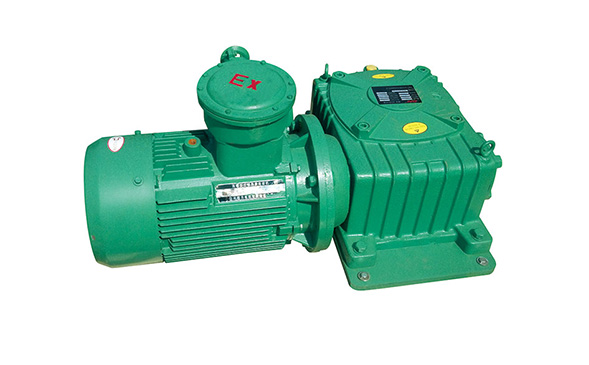

JBQ series slurry mixer adopts circular arc cylindrical worm reducer, with circular arc cylindrical worm in shaft section and conjugate circle with turbine teeth. Therefore, concave and convex teeth have reliable performance, high efficiency and compact structure,large stirring intensity and wide sweep range.
Model | Motor | Speed | Impeller | Impeller Qty | Ratio | EX Standard | Weight | Dimension:mm |
---|---|---|---|---|---|---|---|---|
JBQ030D | 3kW | 650mm | 1 | 154kg | 717×560×472 | |||
JBQ055D | 5.5kW | 850mm | 1 | 280kg | 892×700×600 | |||
JBQ075D | 60/72RPM (50Hz/60Hz) | 950mm | 1 | EXdIIBt4/ IECEX/ A-TEX | 287kg | |||
JBQ075DD | 7.5kW | 800mm | 2 | 25:01:00 | 297kg | 980×750×608 | ||
JBQ110D | 1050mm | 1 | 402kg | |||||
JBQ110DD | 11kW | 850mm | 2 | 419kg | 1130×840×655 | |||
JBQ150D | 1100mm | 1 | 423kg | |||||
JBQ150DD | 15kW | 950mm | 2 | 441kg | 1158×840×655 | |||
JBQ185DD | 18.5kW | 1050mm | 2 | 746kg | 1270×1000×730 | |||
JBQ220DD | 22kW | 1100 | 2 | 820kg | 1270×1000×730 | |||
Remarks: Shaft and impeller will be provided by GN, | ||||||||
but not including in the weight & dimension. Shaft is 15 Kg per meter. |
