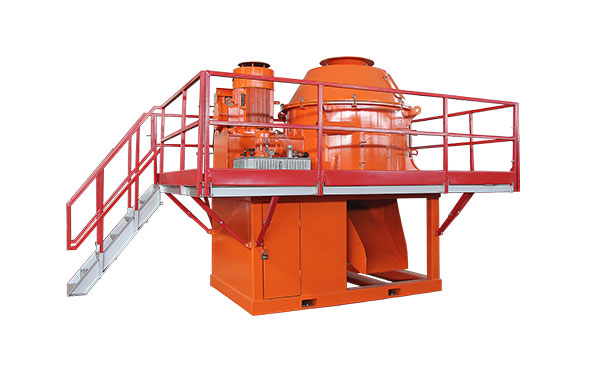

Vacuum Degaser
Product Introduction
Vacuum Degasser is a new special equipment for treating gas-invaded drilling fluids, also known as negative pressure degasser. It can quickly remove all kinds of gas invaded into drilling fluids. It plays an important role in restoring the proportion of mud and stabilizing mud performance. At the same time, it can also be used as a high-power agitator, which is suitable for various mud circulating purification systems. The equipment belongs to the negative pressure degasser. It has a scientific and reasonable design structure. It can effectively separate gas and liquid, filter out impurities and ensure the smooth exhaust pipe.
Product Details

ZCQ Vacuum Degassers are able to service the needs of any application. It is usually installed after the shakers. Each degasser effectively and efficiently removes gases from gas-cut mud, thus ensuring that the proper mud weight is pumped downhole. Unlike the traditional vacuum degasser, ZCQ vacuum degasser is a self-contained unit, Jereh Vacuum Degasser is monitored by level sensor to protect over suction of the fluids. The gas-cut mud is drawn into the degasser by a vacuum created by a re- generative vacuum without needing centrifugal pump . Jereh degasser can act as a big agitator for the drilling mud, which helps the treatment for desander and desilter.

Specifications
Model ZCQ270B ZCQ360B
Tank Diameter 920mm
Capacity ≤270m3/h ≤360m3/h
Vacuum Degree -0.02 ~ -0.04Mpa
Handling  Efficiency ≥95%
Main Motor Power 22Kw 37Kw
Pump Motor Power 7.5Kw
Rotation Speed 700RPM 860RPM
Ex Standard ExdIIBt4/IECEX/ATEX
Suction Size DN150
Output Size DN200
Weight 1779kg 1815kg
Dimension: mm 2100×1605×1729 2100×1605×1729
