Fracturing & Acidizing Additives
Order Online Download
Clay Stabilizer-- ACS-7
Green Clay Stabilizer—CS-Green
Organic Zirconium--130-12B
Organic Boron --112-12B
Corrosion Inhibitor-CorrTEC-12
Iron Stabilizer—Fe-ST-9
Acid Gelling Agent—AG-10
Non-Emulsifier—NE-31
Product Introduction

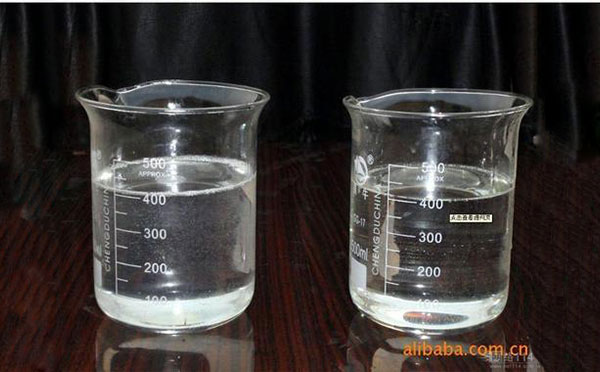

ACS-7 clay stabilizer is a cationic polymer based, and mix with special surfactant. With unique polymer structure, ACS-7 helps prevent problems associated with clay swelling and plugging in water-sensitive formations. ACS-7 can adsorb on formation surfaces, altering the surface properties of the fine particles, and reduce their interaction with flowing fluids. The multiple organic cationic groups in the polymer chains can be strongly adsorbed on the exchange point of the clay, with intermolecular force and hydrogen bonding force forming a network covering the surface of the clay, which can obviously prevents the hydration expansion and dispersion of clay minerals in the reservoir
Order Online Download
Product Details

Packing and Storage
• ACS-7 can be packed in 50L / 200L / 55 US-gal / 1000L drums.
• Follow safe warehousing practices regarding palletizing, shrink-wrapping and stacking.

Specifications
Appearance Clear to dark yellow liquid
Bulk Density, g/cm3 1.05±0.03
pH 6.5-8
Flash Point >90℃
Clay Stability Rate
In guar gum based fluid >90%
In acidizing fluid >92%
Product Introduction
CS-Green clay stabilizer is a special selected choline chloride based environment friendly product, which performed as effective temporary clay stabilizer for smectite, illite and mixed layer clay minerals, those commonly found in formations. It helps to prevent clay particles from swelling and plugging in water-sensitive formations. CS-Green is a liquid replacement for the various salts used in aqueous fracturing treatments.
Order Online Download
Product Details

Packing and Storage

• CS-Green clay stabilizer is available in 55-USgal and IBC drums.

• Follow safe warehousing practices regarding palletizing, banding, shrink-wrapping and/or stacking.



Specifications
Appearance  White to light yellow liquid
Solubility 100% Soluble in water
Specific Gravity 1.07 - 1.10
Flash Point >100℃(212℉)
pH
7-9
Product Introduction

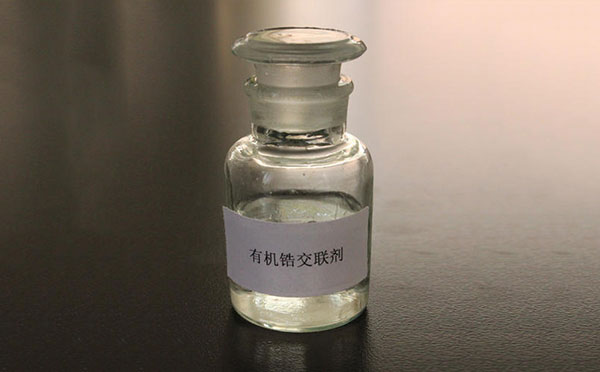

Organic zirconium crosslinking agent130-12B can crosslink with water-solubility macromeclecule polymer with cis ortho hydroxyl in weak acid to weak alkaline working fluid. The application concentration is 0.25-0.50% commonly, or according to the specific circumstance.
Order Online Download
Product Details

Packing and Storage

• Packaging: Packaging with 200L plastic barrels, also can packing according to the requirements of customers.

• Storage: Store in a ventilated place, prevent exposure to sun, valid for 24 months.



Specifications
Items
Standards
Appearance Light yellow to orange yellow liquid
pH
6-8
Density, g/cm3 1.1-1.4
Crosslinking time, s 40-300
Applicable temperature, ℃  ≥120
Crosslinking performance Gel can be hung by the glass rod
Water solubility Miscibility
Product Introduction

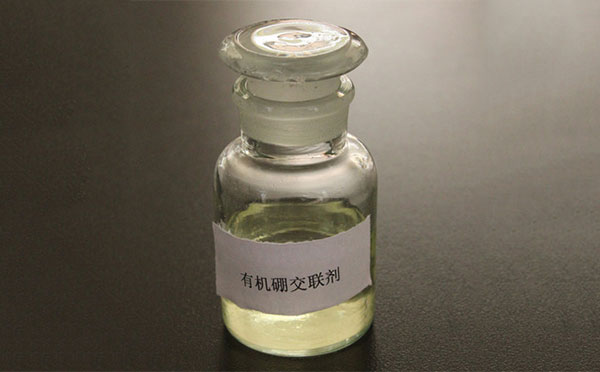

112-12B is used for plant glue, it is suitable for the alkaline conditions. It has a wide crosslinking range, over-crosslinking not drainage, low temperature gel is not brittle, complete hydration. It does not return the glue in low temperature. It has strong temperature resistance and shear resistance, good characteristic of carrying sand. Used alone or 1:1mixed with water. The dosage is 0.2-0.5% when used alone.
Order Online Download
Product Details

Packing and Storage

• Packing: Packaging with 200L plastic barrels, also can packing according to the requirements of customers.

• Storage: Store in a ventilated place, prevent exposure to sun, valid for 24 months.



Specifications
Items
Standards
Appearance Colorless or light yellow viscous liquid
pH 8-12
Density, g/cm3 1.0-1.2
Crosslinking time, s 30-360
Applicable temperature, ℃  ≤120
Crosslinking performance Gel can be hung by the glass rod
Product Introduction

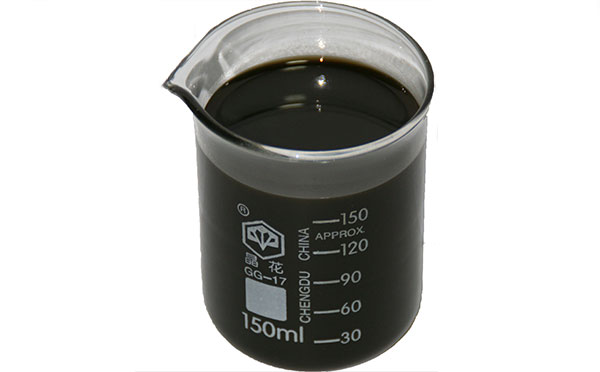

CorrTEC-12 HT corrosion inhibitor is a high concentration acid corrosion inhibitor, which can be used in 5% to 28% HCl solutions, gelling acid, diverting acid, cross-linked acid and HCl+HF acid fluid systems, and with low dosage ratio. CorrTEC-12 is quinoline quaternary ammonium salt, acetylenic alcohols, 2-benzoylallyl blcohol, and fatty alcohol polyoxyethylene ether based and the mixture in aqueous alcohol solvent system. CorrTEC-12 has excellent performance even at bottomhole temperatures (BHTs) up to 428°F (220°C), and the higher temperature the more stable it performs.
Order Online Download
Product Details

Packing and Storage

CorrTEC-12 could be packaged in 25-L drums, 55-USgal drums, 200-L drums, or 1000-L IBC tank.

Keep away from heat, sparks and flames. Store away from incompatibles. Follow safe warehousing practices regarding palletizing, banding, shrink-wrapping and/or stacking



Specifications
Appearance Dark brown liquid
Specific Gravity, %  0.92-0.97
Flash Point 158 ℉ (70 ℃)

Solubility:

1-4% in water 100%Soluble

1-4% in 15% HCl Soluble

1-4% in kerosene Insoluble

 100%
Product Introduction
H-Q Chem A- Fe-ST-9 is environmental acceptable iron- chelating agent, which helps to prevent the precipitation of hydrated oxides of iron as the hydrochloric acid (HCl) spends. Fe-ST-9 could stabilize nine times more iron than typical iron sequestrants such as citric acid.
Order Online Download
Product Details

Packing and Storage

Fe-ST-9is available in 25-L drums, 55-USgal drums, 200-L drums, or 1000-L IBC tank.

Keep away from heat, sparks and flames. Store away from incompatibles. Follow safe warehousing practices regarding palletizing, banding, shrink-wrapping and/or stacking.



Specifications
Appearance Light yellow to wine like liquid
Specific Gravity, % 1.1-1.15
Flash Point  >158 ℉ (70 ℃)
pH(1%in water)  6.5-8.0
Product Introduction
AG-10 liquid acid gelling agent is a dispersion high viscosity polymer-based superior gelling agent that can be used to gel hydrochloric and organic acid. AG-10 is also crosslinkable and could be used in crosslinked acid system. AG-10 is produced with stable suspension ability, it is easy to handle, flows readily and develops high viscosity rapidly. Another advantage of AG-10 is the self-degradation ability, which means the polymer chains can degrade to small pieces under downhole conditions and do not cause damage to the reservoir.
Order Online Download
Product Details

Packing and Storage

AG-10 liquid acid gelling agent is available in 5 US-gal/drum, 55 US-gal/drum, IBC drum.

Keep away from heat, sparks and flames. Store away from incompatibles. Follow safe warehousing practices regarding palletizing, banding, shrink-wrapping and/or stacking.



Specifications
Appearance White to light yellow liquid
Solubility 100% Soluble in water or acid
Density, g/cm3  0.95 - 1.05
Flash Point >100℃(212℉)
Product Introduction
NE-31 is Fluorocarbon surfactants based Non-Emulsifier agent.It is a nonhazardous clear mixture consisting of a solvent, surfactant, and cosurfactant. NE-31 is designed for use in aqueous-base stimulation fluids, is used to lower the interfacial tension that restricts fluid flow in the rock matrix as well as to lower the capillary. Such as Fracturing and acidizing, lowering interfacial tension of the interface of oil-water phase.
Order Online Download
Product Details

Packing and Storage

 • 200L-drum, 55USgal-drum, 1000L IBC drum.

 • Follow safe warehousing practices regarding palletizing, banding, shrink-wrapping and stacking.



Specifications
Appearance Clear liquid
Specific gravity @25 degC 0.95-0.98
Flash point, degC ≥110.0
pH
6.5
Solubility in water
100%
